How to Troubleshoot Garage Door Sensor Issues: A Complete Guide

Garage door sensors are an essential component of any automatic garage door system. They ensure safety by preventing the door from closing when an object or person is in the way. However, like any other mechanical component, garage door sensors can malfunction, leading to frustrating issues such as a garage door refusing to close or constantly reversing.

If you’re dealing with garage door sensor issues, don’t worry! Many of these problems can be fixed with a few simple troubleshooting steps. In this guide, we’ll walk you through how to diagnose, fix, and maintain your garage door sensors to keep your garage door functioning smoothly.

What Are Garage Door Sensors?

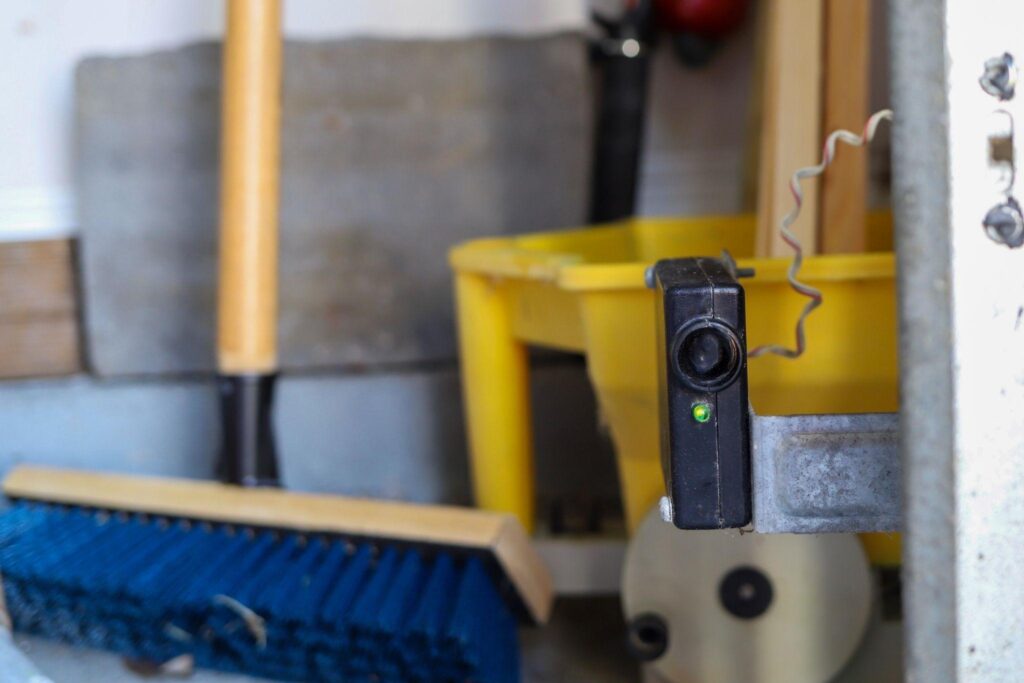

Garage door sensors, also known as photo-eye sensors, are small devices located near the bottom of the garage door tracks. They work by sending an invisible infrared beam from one sensor to another. If something blocks the beam, the door will stop closing and reverse to prevent accidents.

Types of Garage Door Sensors:

• Infrared Photo Sensors: The most common type; they send an infrared beam to detect obstructions.
• Pressure Sensors: Installed at the base of the garage door; they detect physical resistance.
• Motion Sensors: Used in some advanced garage systems to detect movement around the door.

If any of these sensors fail, your garage door may refuse to close, blink, or reverse unexpectedly—making troubleshooting essential.

Common Signs of Garage Door Sensor Issues

Before jumping into troubleshooting, let’s identify the symptoms of a faulty sensor:

• Garage door won’t close completely.
• Blinking or flashing sensor lights.
• Garage door reverses unexpectedly when closing.
• Unresponsive garage door opener.
• Sunlight interference causes the door to malfunction.
• Physical damage to the sensor casing or wiring.

If you’re experiencing any of the above issues, follow the step-by-step troubleshooting guide below.

Basic Garage Door Sensor Troubleshooting Steps

Step 1: Check for Obstructions

• Ensure there’s nothing blocking the sensor’s path.
• Remove dust, cobwebs, leaves, or small debris.
• If you have pets or kids, make sure their toys aren’t interfering with the sensors.

Step 2: Clean the Sensor Lenses

• Dirt and dust buildup can block the infrared beam.
• Use a soft cloth with mild soap and water to clean the sensor lenses.
• Avoid using harsh chemicals, as they may damage the sensor surface.

Step 3: Realign the Sensors

• Both sensors should be at the same height and directly facing each other.
• If the sensors are out of alignment, the infrared beam will not connect properly.
• Adjust the sensors manually until both lights on the sensors remain steady (not blinking).

Step 4: Inspect the Sensor Wiring

• Check for frayed, loose, or disconnected wires leading to the sensors.
• Ensure all wiring connections are intact and not damaged by rodents or wear and tear.
• If necessary, secure loose wires with electrical tape or reconnect them properly.

Step 5: Check for Sunlight Interference

• Direct sunlight hitting the sensors can disrupt the infrared beam.
• If this is the issue, adjust the sensor angle slightly or install a sun shield to block excessive light.

Understanding Sensor Light Codes & What They Mean

Most garage door sensors have LED indicator lights that signal whether they are working properly.

• Loud snapping noises during operation.
• The door struggles to open or remains stuck.
• Visible gaps in the spring coils.

Sensor Light Status	Meaning	Troubleshooting Tip
Solid Green	Sensor is properly aligned and functioning.	No action needed.
Blinking Green	Sensor is misaligned.	Adjust sensor alignment.
Solid Red	Sensor is receiving power but not detecting a signal.	Check for obstructions and realign.
Blinking Red	Wiring issue or faulty sensor.	Inspect wiring; replace sensor if necessary.

If your garage door sensor lights are blinking, use the table above to diagnose and fix the issue.

Advanced Garage Door Sensor Fixes

If basic troubleshooting doesn’t solve the problem, try these advanced fixes:

1. Adjust the Sensor Brackets

• Use a level tool to ensure both sensors are perfectly aligned.
• Tighten the mounting screws to keep them in place.

2. Reset the Garage Door Opener

• Unplug the garage door opener for 30 seconds, then plug it back in.
• This can reset the system and clear minor sensor errors.

3. Replace Faulty Sensors

• If all else fails, the sensor itself may be damaged.

Purchase a compatible replacement sensor and follow the installation instructions.

When to Call a Professional for Garage Door Sensor Issues

Some garage door sensor problems require expert assistance. Call a professional if:

• The sensors continue to malfunction despite troubleshooting.
• There is severe wiring damage that requires electrical repair.
• Your garage door opener system is outdated and may need replacement.

A professional technician can inspect, repair, or replace the sensors to ensure your garage door is safe and reliable.

Preventative Maintenance Tips to Avoid Sensor Issues

• Clean sensor lenses regularly to prevent dust buildup.
• Keep the sensor area clear of objects that might block the beam.
• Check and tighten sensor brackets periodically to maintain alignment.
• Test the garage door safety system monthly by blocking the sensor with an object and ensuring the door reverses properly.

Following these tips will reduce future garage door sensor issues and improve the overall functionality of your garage door.



Conclusion

Garage door sensor issues can be frustrating, but most problems can be easily diagnosed and fixed with simple troubleshooting. By following this guide, you can keep your garage door sensors working properly and ensure your garage remains safe and functional.

If the problem persists, don’t hesitate to contact a professional garage door technician for expert help.

Need garage door repairs? Contact Garage Doors by Nestor for professional service!



FAQs About Garage Door Sensor Troubleshooting

Why is my garage door sensor blinking?
The sensors may be misaligned, dirty, or blocked by an object.

Can I bypass my garage door sensors temporarily?
Yes, but it is not recommended for safety reasons. If necessary, you can hold down the garage door wall button to force-close the door.

How do I know if my garage door sensor is bad?
If the lights on the sensors do not turn on or remain blinking after troubleshooting, the sensor may be faulty.

Why does my garage door keep reversing when closing?
This usually means the sensors are misaligned or detecting an obstruction.
